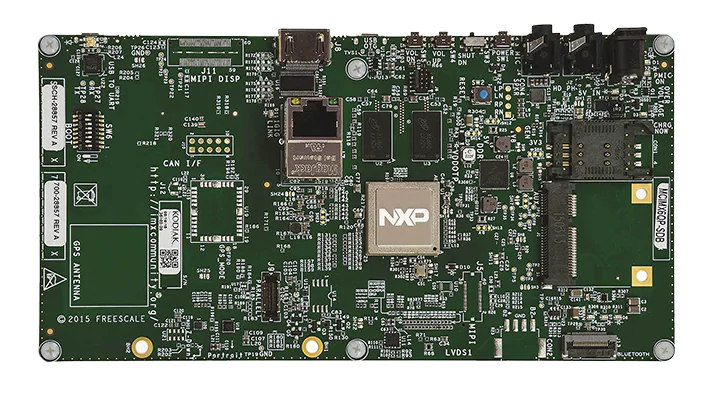

IMX6Q 运行 VxWorks 7.0 系统
本文简要概述了如何在IMX6Q上从uboot下载并启动VxWorks 7.0的过程。
U-Boot 2015.04 (Jan 01 2017 - 22:35:22)
CPU: Freescale i.MX6Q rev1.5 at 792 MHz
CPU: Temperature 51 C
Reset cause: POR
Board: LYS-IMX6Q
I2C: ready
DRAM: 1 GiB
MMC: FSL_SDHC: 0, FSL_SDHC: 1, FSL_SDHC: 2
No panel detected: default to Hannstar-XGA
Display: Hannstar-XGA (1024x768)
In: serial
Out: serial
Err: serial
switch to partitions #0, OK
mmc2(part 0) is current device
Net: FEC [PRIME]
Normal Boot
Hit any key to stop autoboot: 0
=>
=>
=> tftp 10100000 vxworks.bin
Using FEC device
TFTP from server 192.168.0.106; our IP address is 192.168.0.3
Filename 'vxworks.bin'.
Load address: 0x10100000
Loading: T #################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#
617.2 KiB/s
done
Bytes transferred = 6679780 (65ece4 hex)
=> go 10100000
## Starting application at 0x10100000 ...
Target Name: vxTarget
_________ _________
\77777777\ /77777777/
\77777777\ /77777777/
\77777777\ /77777777/
\77777777\ /77777777/
\77777777\ \7777777/
\77777777\ \77777/ VxWorks 7
\77777777\ \777/
\77777777\ \7/ Core Kernel version: 1.2.0.1
\77777777\ - Build date: May 10 2018 23:37:28
\77777777\
\7777777/ Copyright Wind River Systems, Inc.
\77777/ - 1984-2018
\777/ /7\
\7/ /777\
- -------
Board: LYS-IMX6Q i.MX6Q Processor - ARMv7
OS Memory Size: 2048MB
ED&R Policy Mode: Deployed
Application Mode Agent: Not started
Stop Mode Agent: Not started
Adding 14023 symbols for standalone.
->
-> devs
drv name
0 /null
1 /tyCo/0
1 /tyCo/1
1 /tyCo/2
1 /tyCo/3
2 /vxbus
9 /input/event
12 host:
13 /dev/fb0
14 /dev/galcore
10 /audio/0
value = 25 = 0x19
->
-> Instantiating /sd1:2 as rawFs, device = 0x30001
-> Instantiating /mmc2:2 as rawFs, device = 0xa0001
->
-> devs
drv name
0 /null
1 /tyCo/0
1 /tyCo/1
1 /tyCo/2
1 /tyCo/3
2 /vxbus
9 /input/event
12 host:
13 /dev/fb0
14 /dev/galcore
10 /audio/0
4 /sd1:1
5 /sd1:2
4 /sd0:1
4 /mmc2:1
5 /mmc2:2
value = 25 = 0x19
->
->
-> cd "/sd0:1"
value = 0 = 0x0
->
-> ll
drwxrwxrwx 1 0 0 4096 Mar 8 2018 System Volume Information/
-rwxrwxrwx 1 0 0 12514633 Nov 26 2012 RAMDISK.GZ
-rwxrwxrwx 1 0 0 14811136 Nov 26 2012 UBI.IMG
-rwxrwxrwx 1 0 0 234896 Dec 4 2012 U-BOOT.IMG
-rwxrwxrwx 1 0 0 3245384 Dec 27 2012 uImage
-rwxrwxrwx 1 0 0 36079 Dec 4 2012 MLO
value = 0 = 0x0
->
->
->
-> ipAttach 0,"gei"
value = 0 = 0x0
->
-> ifconfig
lo0 Link type:Local loopback
inet 127.0.0.1 mask 255.255.255.255
inet6 unicast fe80::1%lo0 prefixlen 64 automatic
inet6 unicast ::1 prefixlen 128
UP RUNNING LOOPBACK MULTICAST NOARP ALLMULTI
MTU:1500 metric:1 VR:0 ifindex:1
RX packets:0 mcast:0 errors:0 dropped:0
TX packets:0 mcast:0 errors:0
collisions:0 unsupported proto:0
RX bytes:0 TX bytes:0
enet0 Link type:Ethernet HWaddr 00:04:9f:b1:b2:b3
capabilities: VLAN_MTU
inet 192.168.0.3 mask 255.255.255.0 broadcast 192.168.0.255
inet6 unicast fe80::204:9fff:feb1:b2b3%enet0 prefixlen 64 automatic
UP RUNNING SIMPLEX BROADCAST MULTICAST
MTU:1500 metric:1 VR:0 ifindex:2
RX packets:353 mcast:0 errors:0 dropped:4
TX packets:30 mcast:5 errors:0
collisions:0 unsupported proto:0
RX bytes:21366 (21 k) TX bytes:1920
gei0 Link type:Ethernet HWaddr 00:1b:21:75:26:d7
capabilities: TXCSUM TX6CSUM VLAN_MTU VLAN_TXHWTAG VLAN_RXHWTAG
SIMPLEX BROADCAST MULTICAST
MTU:1500 metric:1 VR:0 ifindex:3
RX packets:0 mcast:0 errors:0 dropped:0
TX packets:0 mcast:0 errors:0
collisions:0 unsupported proto:0
RX bytes:0 TX bytes:0
value = 0 = 0x0
->
-> ifconfig "gei0 192.168.0.230 up"
value = 0 = 0x0
->
-> ifconfig
lo0 Link type:Local loopback
inet 127.0.0.1 mask 255.255.255.255
inet6 unicast fe80::1%lo0 prefixlen 64 automatic
inet6 unicast ::1 prefixlen 128
UP RUNNING LOOPBACK MULTICAST NOARP ALLMULTI
MTU:1500 metric:1 VR:0 ifindex:1
RX packets:0 mcast:0 errors:0 dropped:0
TX packets:0 mcast:0 errors:0
collisions:0 unsupported proto:0
RX bytes:0 TX bytes:0
enet0 Link type:Ethernet HWaddr 00:04:9f:b1:b2:b3
capabilities: VLAN_MTU
inet 192.168.0.3 mask 255.255.255.0 broadcast 192.168.0.255
inet6 unicast fe80::204:9fff:feb1:b2b3%enet0 prefixlen 64 automatic
UP RUNNING SIMPLEX BROADCAST MULTICAST
MTU:1500 metric:1 VR:0 ifindex:2
RX packets:376 mcast:0 errors:0 dropped:4
TX packets:31 mcast:5 errors:0
collisions:0 unsupported proto:0
RX bytes:22746 (22 k) TX bytes:1980
gei0 Link type:Ethernet HWaddr 00:1b:21:75:26:d7
capabilities: TXCSUM TX6CSUM VLAN_MTU VLAN_TXHWTAG VLAN_RXHWTAG
inet 192.168.0.230 mask 255.255.255.0 broadcast 192.168.0.255
inet6 unicast fe80::21b:21ff:fe75:26d7%gei0 prefixlen 64 tentative automatic
UP RUNNING SIMPLEX BROADCAST MULTICAST
MTU:1500 metric:1 VR:0 ifindex:3
RX packets:0 mcast:0 errors:0 dropped:0
TX packets:3 mcast:2 errors:0
collisions:0 unsupported proto:0
RX bytes:0 TX bytes:210
value = 0 = 0x0
->
-> ifconfig "enet0 down"
value = 0 = 0x0
->
-> ifconfig
lo0 Link type:Local loopback
inet 127.0.0.1 mask 255.255.255.255
inet6 unicast fe80::1%lo0 prefixlen 64 automatic
inet6 unicast ::1 prefixlen 128
UP RUNNING LOOPBACK MULTICAST NOARP ALLMULTI
MTU:1500 metric:1 VR:0 ifindex:1
RX packets:0 mcast:0 errors:0 dropped:0
TX packets:0 mcast:0 errors:0
collisions:0 unsupported proto:0
RX bytes:0 TX bytes:0
enet0 Link type:Ethernet HWaddr 00:04:9f:b1:b2:b3
capabilities: VLAN_MTU
inet 192.168.0.3 mask 255.255.255.0 broadcast 192.168.0.255
SIMPLEX BROADCAST MULTICAST
MTU:1500 metric:1 VR:0 ifindex:2
RX packets:411 mcast:0 errors:0 dropped:25
TX packets:34 mcast:7 errors:0
collisions:0 unsupported proto:0
RX bytes:24868 (24 k) TX bytes:2220
gei0 Link type:Ethernet HWaddr 00:1b:21:75:26:d7
capabilities: TXCSUM TX6CSUM VLAN_MTU VLAN_TXHWTAG VLAN_RXHWTAG
inet 192.168.0.230 mask 255.255.255.0 broadcast 192.168.0.255
inet6 unicast fe80::21b:21ff:fe75:26d7%gei0 prefixlen 64 tentative automatic
UP SIMPLEX BROADCAST MULTICAST
MTU:1500 metric:1 VR:0 ifindex:3
RX packets:0 mcast:0 errors:0 dropped:0
TX packets:12 mcast:11 errors:0
collisions:0 unsupported proto:0
RX bytes:0 TX bytes:900
value = 0 = 0x0
->
->
-> ifconfig
lo0 Link type:Local loopback
inet 127.0.0.1 mask 255.255.255.255
inet6 unicast fe80::1%lo0 prefixlen 64 automatic
inet6 unicast ::1 prefixlen 128
UP RUNNING LOOPBACK MULTICAST NOARP ALLMULTI
MTU:1500 metric:1 VR:0 ifindex:1
RX packets:0 mcast:0 errors:0 dropped:0
TX packets:0 mcast:0 errors:0
collisions:0 unsupported proto:0
RX bytes:0 TX bytes:0
enet0 Link type:Ethernet HWaddr 00:04:9f:b1:b2:b3
capabilities: VLAN_MTU
inet 192.168.0.3 mask 255.255.255.0 broadcast 192.168.0.255
SIMPLEX BROADCAST MULTICAST
MTU:1500 metric:1 VR:0 ifindex:2
RX packets:536 mcast:0 errors:0 dropped:150
TX packets:34 mcast:7 errors:0
collisions:0 unsupported proto:0
RX bytes:32412 (32 k) TX bytes:2220
gei0 Link type:Ethernet HWaddr 00:1b:21:75:26:d7
capabilities: TXCSUM TX6CSUM VLAN_MTU VLAN_TXHWTAG VLAN_RXHWTAG
inet 192.168.0.230 mask 255.255.255.0 broadcast 192.168.0.255
inet6 unicast fe80::21b:21ff:fe75:26d7%gei0 prefixlen 64 automatic
UP RUNNING SIMPLEX BROADCAST MULTICAST
MTU:1500 metric:1 VR:0 ifindex:3
RX packets:68 mcast:1 errors:0 dropped:61
TX packets:81 mcast:71 errors:0
collisions:0 unsupported proto:0
RX bytes:7687 TX bytes:6360
value = 0 = 0x0
->
